1. Overview

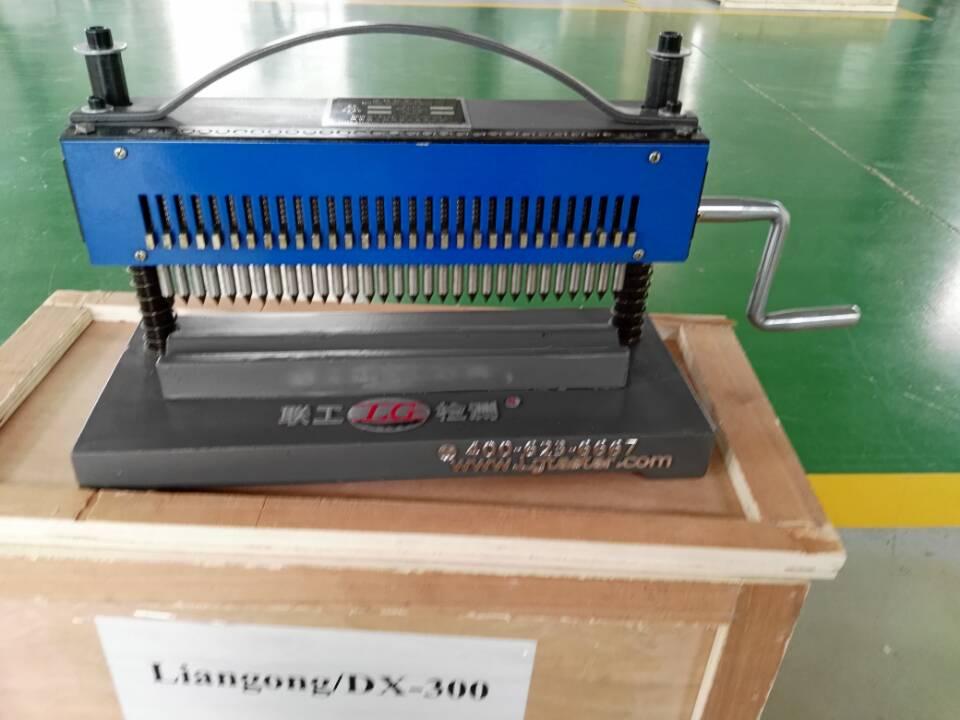

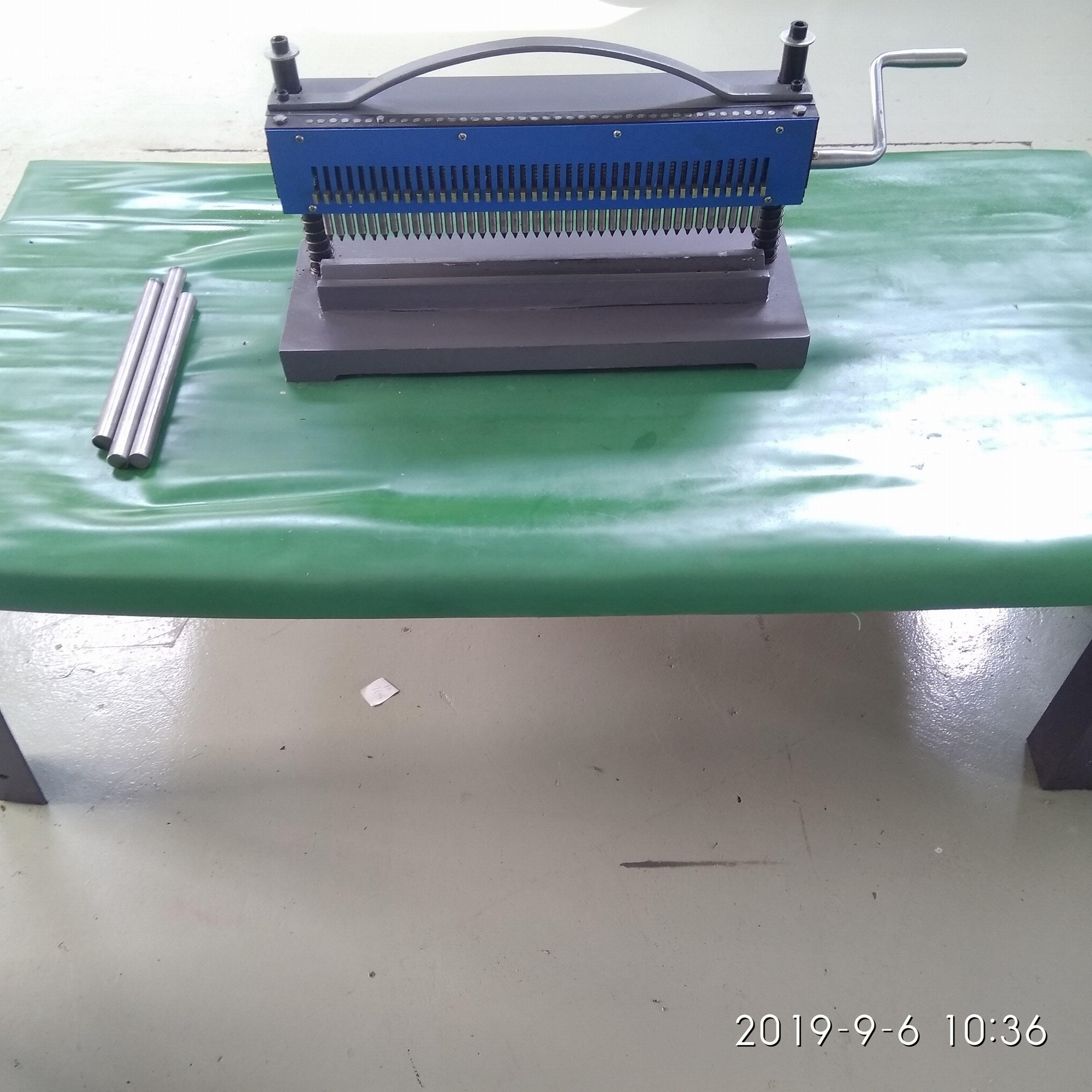

DB-DX Type Gauge Length Meter (Striking Point Machine) is the special equipment which is designed and made according to stipulation in national standard GB/T228-2002 <Metal material room time tensile testing metho t;.

This machine adopts high-precision ball screw to locate correctly and uses import transducer to collecting rotation signal to drive high-frequency electromagnet to strike point synchronously.

Gauge length is correct, high-efficient and easy to operate. It’s the necessary matching equipment for labs.

Model Number:DX-400

Power:Manual

Usage:Tensile Testing Machine

Control manner:manual

Point space:10mm

striking point no.each time:40

longest gauge:400mm

machine dimension:490*200*400mm

Net weight:22kg
