1 Function

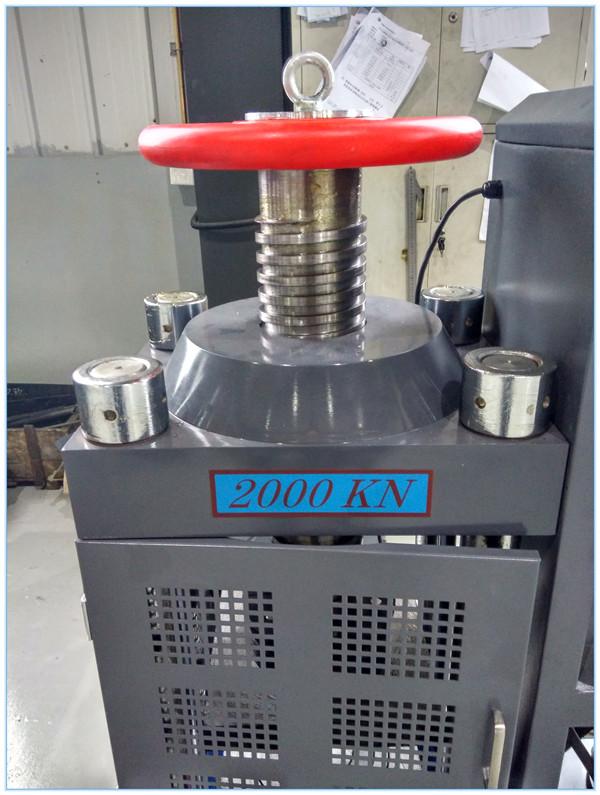

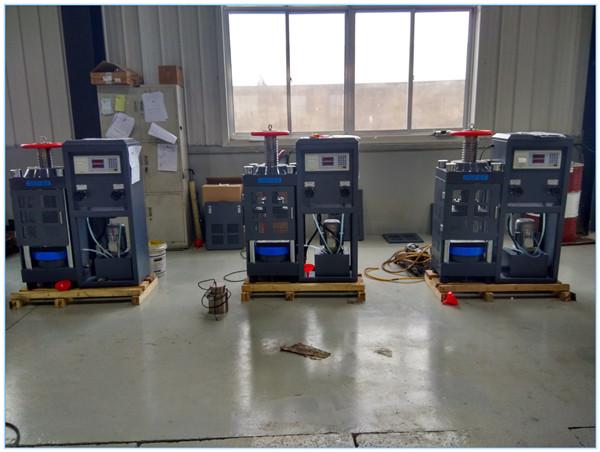

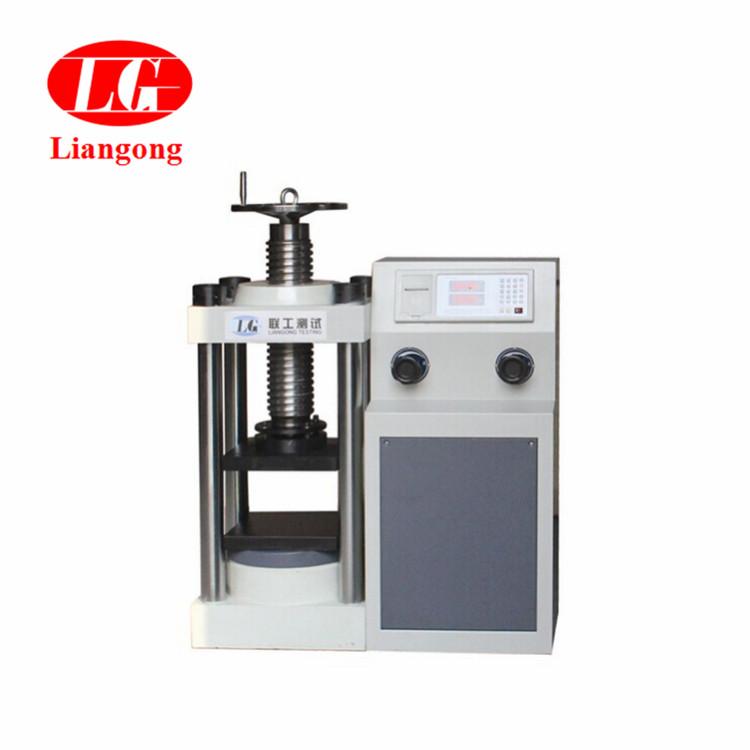

This machine mainly used for the compressive strength test to brick, stone, cement, concrete materials, which can also be used to other materials compressive performance tests.
The machine adopts hydraulic add load, electronic force measurement, with load digital display, add load rate display, and keep the maximum load value, overload protection and power outages data keep etc.

2 Technical parameters
Model:   YES-2000
Max. testing force:   2000kN
Measurement range:   4%-100%FS
Relative error of test force value:   ±1%
Leading screw adjusting mode:    Electronic/manual
Test force Resolution:   0.01kN
Motor power:   0.75KW
Pressure plate size:   370*370mm
Max. distance between up and below pressure plate:   330m
Max. piston stroke:   40mm
Piston diameter:   φ310mm
System work pressure:   40Mpa
Host dimension(mm):   1000*500*1500
Weight:   2000kg
Remarks: It also can customize according to customers requirement
