2.4G Wireless Transceiver Module with CC2500 Chip and PA

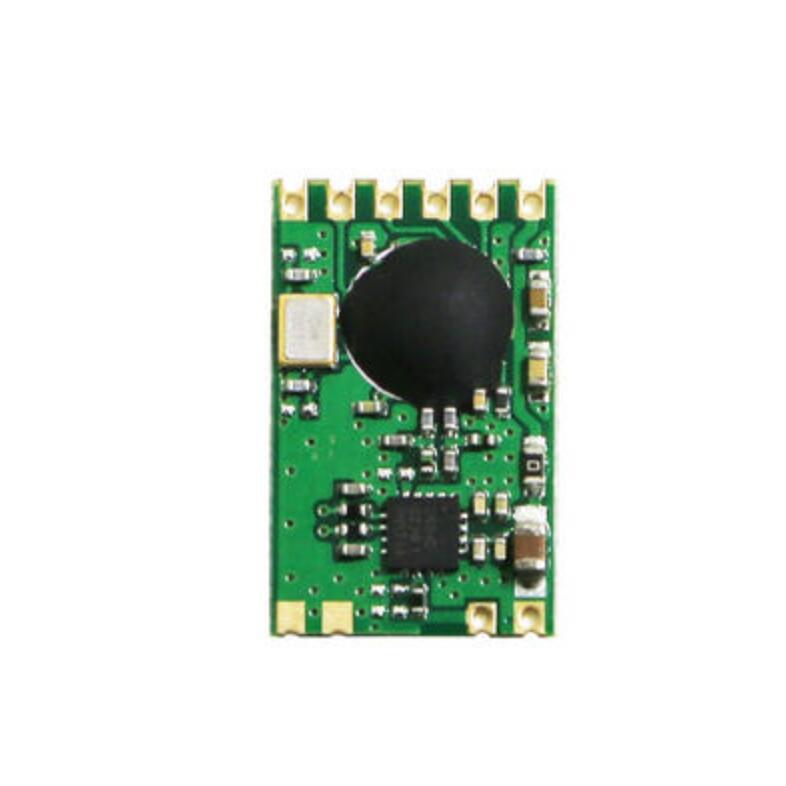

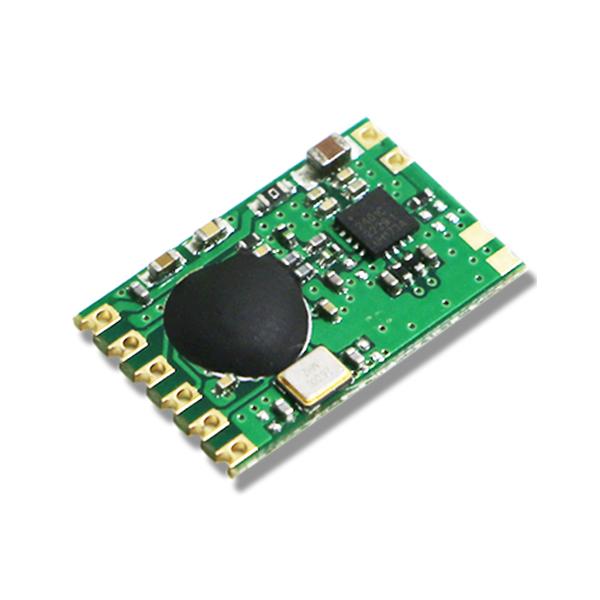

Designed base on TI-Chipcon’s CC2500 wireless transceiver chip, DL-24PA is a compact, cost-effective, remote wireless transceiver module. This 2.4G wireless Module is widely used in the fields of smart home, toys, model airplane and near range digital transmission control. Sensitivity up to -104dbm, maximum transfer rate up to 500Kbps, output power through register configuration range -30dbm to 20dbm.

The module has integrated all radiofrequency related functions, and users can easily develop wireless products with stable performance and high reliability directly, which will extremely shorten the development cycle without in-depth understanding of RF circuit design SMD and DIP interface modes are adopted, but manual welding is required due to different thermal expansion coefficient of the black glue and the binding wire inside. Small module size makes it easy to use in portable products and compatible with DL-24D 2.4G RF Module without PA.



Features

● 600m transmission distance in open field (250Kbps)

● Operating frequency 2400-2483mhz

● Operating voltage: 1.8V-3.6V

● Programmable carrier detection, digital RSSI output

● Excellent selectivity and out-of-band isolation

● Gold plate binding process, high cost performance

● High frequency power amplifier, which adopts European and American brand chip

Technical Parameter

DC characteristics

Description	Min.	Max.	Unit
Voltage	1.8	3.6	V
Operating current	RX ＜18mA	TX=110mA@0dbm	mA
Stand-by current		＜1uA	uA
IO port voltage	Vss-0.3	Vdd+0.3	V
Operating temperature	-20	+85	℃

Radio frequency characteristics (Unless otherwise stated, temperature 25 ℃, VCC 3.3V)

No	Parameter	Reference Value Min.  Typ.  Max.	Unit
1	Applied Frequency Range	2400,—，2483.5	MHz
2	Frequency Interval	—,100K,—	Hz
3	Transmit Power	-30,—,20	dBm
4	Reception sensitivity	—,-103,—	dBm
5	Modulation mode	GFSK,2-FSK,OOK	MSK
6	Transmission speed	1.2,—,500	Kbps
7	Harmonic power	-38,—,-35	dBm
8	Communication Distance	500,600,650	M
9	Sensitivity at 2.4K	—,-105,—	dBm
10	OOK modulation mode, rate	—,—,100	Kbps
11	Standby Power Consumption	—,—,0.9	MHz
12	Crystal Precision *3225/2*6	—,10,—	PPM



Pin Definitions

Pin No	Pin’s Name	Description
1	VCC	Supply voltage, DC 1.8-3.6V
2	MOSI	SPI data input，MOSI
3	SCLK	SPI CLOCK
4	MISO	SPI data output, MISO
5	CSN	CSN=0 valid
6	GND	Grounding, common ground with the system
7	ANT	Antenna interface，standard 50Ω antenna
Supplementary	PA control	GPIO0, GPIO2 internally enable EN to control P



Applications

* Wireless Toy Controller

* Wireless keyboard, Mouse

* Consumer Electronics and Toy Aerial Models

* Meteorological monitoring, data collection

* Data monitoring transmission

* Intelligent Home Control

* Remote Controls Supporting Radio Frequency (RF) Technology
