Model: | P4-410DCSPS |
---|---|
Brand: | KC |
Origin: | Made In China |
Category: | Industrial Supplies / Plate Making & Printing Machine |
Label: | pad printer , pad printing machine , china pad printer |
Price: |
US $14736
/ pic
|
Min. Order: | 1 pic |

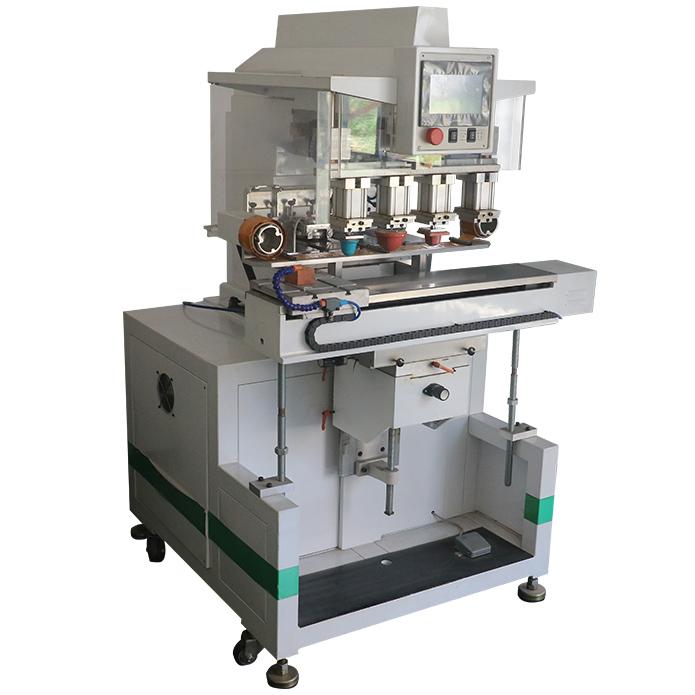

Four-color full-servo high-precision PLC controlled shuttle pad printer
1. Cast iron body
• Stability advantage: The cast iron body has high stability and rigidity. It can effectively reduce the vibration of the machine during high-speed printing and provide a stable platform for printing operations. This stability is essential to ensure printing accuracy, especially when performing high-precision four-color printing, to prevent blurring or offset of the pattern.
• Durability characteristics: The cast iron material itself is relatively strong and durable, and can withstand long-term working pressure and frequent mechanical movement. This makes the body of the pad printer have a long service life, reduces the cost of repair and replacement caused by body damage, and is suitable for use in high-intensity production environments.
2. All imported accessories
• Quality assurance: The use of all imported accessories is an important manifestation of the high quality of this pad printer. These imported accessories usually have higher standards in manufacturing process and material quality, and can provide more precise functions and more reliable performance. For example, imported printing components may have better wear resistance and precision, which helps to improve printing quality and the service life of the machine.
• Advanced technology: Imported accessories are often accompanied by advanced technology. For example, using imported accessories in the control system or transmission system of the pad printer can bring more efficient control algorithms and more sophisticated transmission methods, making the machine more stable and accurate during operation, and able to adapt to complex printing tasks.
3. PLC touch screen operating system
• Ease of operation: The PLC touch screen operating system provides users with an intuitive and convenient operating interface. Through the touch screen, users can easily set various printing parameters, such as color selection, printing speed, printing pressure, etc. This operation method is simple and easy to understand, and can be used without complex training, which greatly improves the convenience of operation.
• Control accuracy: The PLC control system can accurately control each working link of the pad printer. It can accurately perform printing tasks according to pre-set programs and realize complex printing actions and logical control. For example, when performing four-color shuttle printing, the PLC can accurately coordinate the printing order and position of each color to ensure the accuracy of color and the integrity of the pattern.
4. Independent pad printing system
• Flexibility advantage: The independent pad printing system enables each pad to work independently, which brings great flexibility to the printing process. In four-color shuttle printing, each pad can be responsible for printing one color, and the pressure, speed, and position of the pad can be adjusted individually according to the requirements of the pattern, so as to better adapt to different printing needs.
• Improved printing quality: This independence helps to improve printing quality. Because each pad can be optimized for the color and pattern part it is responsible for, the ink can be transferred to the printed object such as ceramic products more accurately, reducing the situation of uneven color mixing or pattern defects, and ensuring the clarity of the printed pattern and the vividness of the color.
5. Automatic print head cleaning system
• Maintenance convenience: The automatic print head cleaning system is a practical function of this pad printer. During the printing process, the pad head is easily contaminated with ink and impurities. The automatic cleaning system can clean the pad head regularly or as needed to keep the pad head clean and reduce printing quality problems caused by print head contamination.
• Improved production efficiency: The system saves time and energy for manual cleaning of the print head, allowing the pad printer to work continuously and efficiently. Moreover, automatic cleaning can ensure that the print head is in good condition every time it prints, which is conducive to ensuring the stability of printing quality. This function is particularly important when performing multiple batches of high-quality printing tasks continuously.
6. Servo shuttle workbench
• Precision control: The servo shuttle workbench is driven by a servo motor, which can achieve high-precision position control and speed control. In four-color shuttle printing, the workbench can accurately move the printed object under each rubber head to ensure that the printing position of each color is accurate. It has high movement accuracy, for example, the position accuracy can reach the micron level, which can meet the requirements of high-precision printing.
• Improved work efficiency: The speed of the servo shuttle workbench can be flexibly adjusted according to the needs of the printing task, which improves work efficiency while ensuring printing accuracy. In addition, the servo system has a fast response speed and can quickly shuttle between different rubber heads, reducing the waiting time during the printing process and improving the overall production efficiency.
7. Comprehensive advantages of high-precision, sturdy, four-color shuttle pad printer
• High-precision printing: Through the stability of the cast iron body, the precise control of the servo shuttle worktable, the flexible adjustment of the independent rubber head printing system, and the precise control of the PLC touch screen operating system, this pad printer can achieve high-precision four-color shuttle printing. Whether printing fine patterns or complex color combinations, it can ensure that the printing quality reaches a high level.
• Durability and reliability: The sturdiness and durability of the cast iron body, the high quality of all imported accessories, and maintenance functions such as the automatic print head cleaning system make this pad printer highly reliable. It can work stably in a long-term, high-intensity production environment, reduce the probability of failure, and provide users with continuous and efficient printing services.
Four colors Independent-press pad printer with servo shuttle//Structure |
||
Feeding |
Manual |
|
Working table |
Servo Shuttle-type working table |
|
Shuttle stroke |
125mm |
|
Ink supply system |
Closed -type system |
|
Plate type and size |
10mm Thick steel plate. Size :150*300mm. |
|
Pad dropping control |
independent pressing cylinder, Automatic rubber pad clean device |
|
Ink drying |
Heat air |
|
Blanking |
Manual |
|
Four colors closed cup pad printer with servo shuttle and pad clean device//Usage and characters |
||
Guide |
|
|
Application fields |
Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field. |
|
Four colors sealed cup pad printer with servo shuttle and pad clean device //Parameter |
||
Technical parameters |
SP4-410DCSP |
SP4-612DCSP |
|
|
|
Works supply |
|
|
Package list |
|
|
H.S.Code |
8443198000 |
|
Certicate |
CE |
|
Four colors closed cup pad printer with servo shuttle and pad clean device //Advantage |
||
Function |
|
