Electric toys Conveyor pad printer

Model:SPM2-150/10T
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:pad printer , pad printing machine , tempo printer
Price: US $3573 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

LC industrial company Limited

Biz MemberGuang Dong - China
Last Online:24 Dec, 2024

Product Description

     Pneumatic two-color turntable oil cup type environmentally friendly pad printer is widely used in the production of electronic toys:

Equipment features

• Pneumatic system: Powered by compressed air, it runs stably and is easy to control. It can accurately adjust parameters such as printing pressure and speed to ensure stable printing quality. It is suitable for electronic toys of different materials and shapes.

• Two-color turntable: Multiple electronic toys can be placed at the same time. The turntable rotates to switch the workstation to achieve two-color printing, improve production efficiency, and accurately position to ensure accurate color registration of the pattern or text printed twice.

• Oil cup design: The oil cup stores ink, has good sealing performance, can reduce ink volatilization and waste, maintain stable ink concentration, reduce pollution to the environment, and can also add ink as needed. It is easy to operate and helps to reduce production costs.

Workflow

First, fix the electronic toy on the turntable workstation. The turntable rotates to make the toy reach the first printing station. The pneumatic system drives the printing rubber head to dip the ink in the oil cup and move it to the toy surface for the first printing. After completion, the turntable will turn to the second station for the second printing, so as to obtain a two-color pattern or text. Finally, the turntable will send the printed toys to the unloading position.

Application advantages

• Improve production efficiency: high degree of automation, two-color printing is completed at one time, and the printing speed is fast, which can meet the needs of large-scale production of electronic toys.

• Ensure printing quality: high pneumatic control precision and stable oil cup inking system make the printed pattern clear, colorful, and firmly attached, improving the appearance quality and grade of the toy.

• Good environmental performance: oil cup sealing reduces ink volatilization and odor emission, which is conducive to improving the production environment and meets environmental protection requirements.

• Wide range of applications: electronic toys of various shapes and sizes and parts of different materials can be printed by replacing rubber heads of different specifications and adjusting printing parameters.

Two colors pad printer with conveyer//Structure

Working table

10 stations conveyer-type working table

Shuttle stroke

125mm

Ink supply system

Closed -type system

Plate type and size

10mm Thick steel plate.

Pad dropping control

Simple-cylinder , simultaneously pressing

Ink drying

Heat air

Two colors pad printer//Usage and characters

Guide

  • Print both one color and two colors with conveyer worktable, Printing speed  is more fast.
  • With sealed cup to protect environment , VOC volatilization reduced 86% and save ink over 25%.
  • With coin aluminum structure ensure more stabilization and long life.
  • Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate;
  • Both thick steel plates and thin steel plates installed , Choose according to customer requirements.
  • Can print almost small size objects . So sold very nice in the world.
  • Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
  • Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
  • One of china famous brand pad printer.
  • Shuttle stroke: 125mm.

Application fields

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

Two colors pad printer with conveyer //Parameter

Technical parameters

SPM2-150/10T

SPM2-200/10T

  • Max. plate size: 100×250mm;
  • Max printing area: 85×130mm;
  • Max. worktable area: 90×125mm;
  • Max. printing speed: 1200pcs/hr;
  • Printable color quantity:2
  • Cup diameter: Φ90mm.
  • Shuttle stroke: 125mm.
  • Max. plate size: 100×300mm;
  • Max printing area: 85×170mm;
  • Max. worktable area: 90×125mm;
  • Max. printing speed: 1200pcs/hr;
  • Printable color quantity:2
  • Cup diameter: Φ90mm.
  • Shuttle stroke: 125mm

Works supply

  • 110V-220VPower supply;
  • 5-7Bar Compress air;

Package list

  • Package dimension:1150×840×1410mm
  • Gross weight: 185
  • CBM: 1.362

H.S.Code

8443198000

Certicate

CE

Two colors pad printer with conveyer//Advantage

Function

  • Microcomputer program controlling operating technique ;
  • Streamline design ensure dexterous Appearance impressions;
  • Coin aluminum structure frame coated Gross-Green color paint;
  • 10-Station conveyer working table installed to get more fast printing speed ;
  • Independency pressure adjustment of pad press-printing and picking up ink;
  • Either testing or running mode to operate ;
  • Closed cup to store and coating ink , save ink and protect environment
  • Automatism digital count function;
  • Double colors pad printing with drying through blowing hot air:
  • Ten grade printing speed setting, auto, semi-auto, testing operation mode setting;
  • Sealed cup driven by independent cylinder , ink remove clean

Summary:
The two-color pad printing machine is the most popular type of pad printing machine, and the rotary pad printing machine has improved its automation. The two-color rotary pad printing machine has always been the type that small and medium-sized enterprises like very much. The number of stations of the two-color pad printing machine ranges from 8-10, and 10 identical products can be installed to complete the printing of single-color or two-color products. The overprinting accuracy of the two-color rotary pad printing machine is higher than that of the four-color one.
Two-color pad printing machines are also divided into open type and closed type, and users can choose according to different needs.
Embed HTML Code:

Product Image

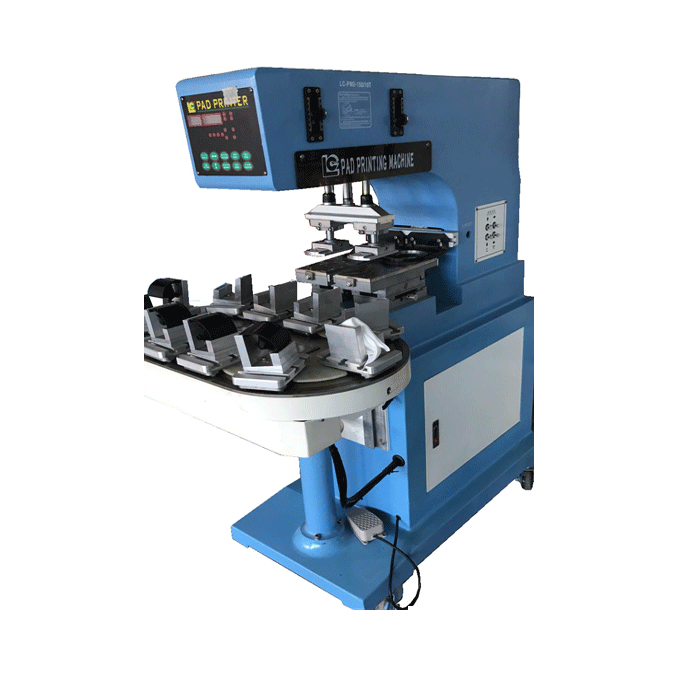

Electric toys Conveyor pad printer  1
