The original 3D imaging solution of this series of 3DAOI V series can image and shoot the components in the PCBA from multiple angles to form a 360-degree imaging without dead angles, which can perfectly detect defects such as QFN virtual soldering and QFN exposed copper, and achieve high-quality and efficient detection results. At the same time, the 8-projection version 3D imaging solution is an upgrade of the standard 4-projection version solution, which can achieve higher precision and more perfect 3D reconstruction effect, so as to easily cope with high requirements for 3D reconstruction such as high parts occlusion and dense pins.

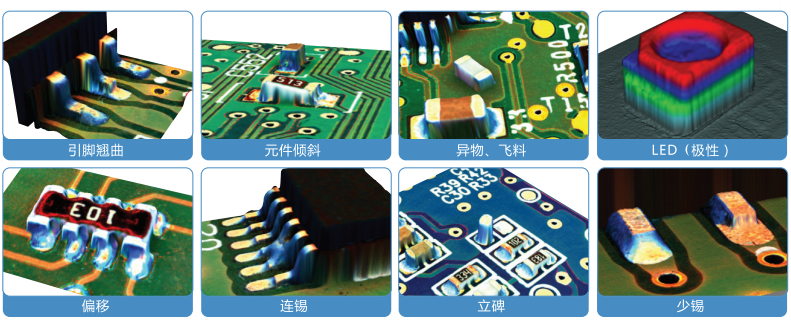

The 3D imaging technology of the V-Series 3DAOI can perform in-depth reconstruction of traditional 2D defect maps, greatly improving the detection accuracy. For defect images that are difficult to determine with traditional 2D inspection, the 3D technology of the V series allows the defects to be directly imaged, and compared with the traditional inspection, the V series 3DAOI has a higher detection rate and more reliable inspection results!

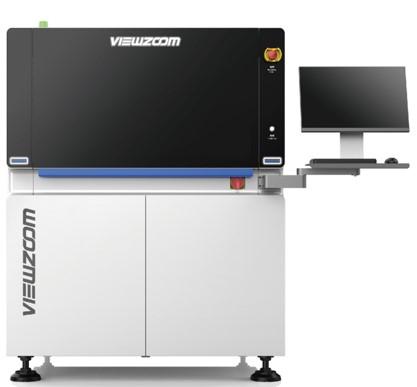

3D AOI
Equipment features:

1. The detection of the highest component reaches 35mm
2. Artificial intelligence AI algorithm, breaking through the boundaries of traditional AOI capabilities and bringing more amazing detection results
3. Changeover programming, the fastest only takes 5 minutes.
4. Precision mode switching, to meet the needs of diverse detection, and the perfect combination with the production rhythm
5. Combination of software and hardware solutions to solve the problem of board surface bending

Core Technology:

01.5 minutes to achieve changeover programming
Venus has a built-in AI-driven intelligent programming system, so that operators with zero program foundation can easily adjust and set parameters according to the production schedule, and can realize changeover programming in as little as 5 minutes, efficiently matching the rhythm of the production line.

02. Comprehensive coverage of all kinds of components
Venus 3D AOI can detect tiny components as small as 0201 (7 μm) / 0603 (12 μm) metric. Based on the self-developed 3D imaging technology, combined with mature and reliable traditional detection algorithms and emerging artificial intelligence (AI) algorithms, Venus directly hits the pain points of the current AOI inspection industry and brings more amazing detection results!

03.8 Opto-mechanical 4D imaging, 360° no dead angle detection
The whole series of Venus can be equipped with 4D imaging solutions + 8 opto-mechanical high-precision 3D imaging solutions on demand. It can achieve higher precision and more perfect 3D reconstruction effect, which can perfectly detect defects such as QFN virtual soldering and QFN exposed copper, so as to easily cope with high requirements for 3D reconstruction such as high parts occlusion and dense pins.
