Precision Laser Wire Stripping System

Mercury-4E精密激光剝線系統

Laser Wire Solutions’ Mercury- 4 E laser wire stripper is an extended version of

the highly popular Mercury- 4 model, allowing for a greater number of wires to

be processed at any one time. LaserWireSolutions的Mercury-4E激光剝線器是非常流行的

Mercury-4型號的擴展版本，允許在任何時候處理更多的電線。

The Mercury- 4 E is an excellent multi- purpose tool for any precision wire

stripping requirements. Designed with cost in mind for general purpose stripping

of performance electronics. Mercury-4E是一款適用於任何精密剝線要求的優秀多用途工具。設計

時考慮到了成本，適用於高性能電子產品的通用剝離。

Unlike conventional laser wire strippers, the Mercury- 4 E utilizes high speed

double-sided galvo- scanner technology. This allows high accuracy positioning of

the laser beam at unprecedented speeds. 與傳統的激光剝線器不同，Mercury-4E採用了高速

雙面galvo掃描儀技術。這允許以前所未有的速度對激光束進行高精度定位 。

Compact 緊湊型

Smallest footprint laser wire stripper on the market: 6”x 14” ( 15 2 mmx3 5 5 mm)

and can be easily retrofitted into existing production lines.

激剝線機尺寸152mmx355mm, 容易放入生產線集成。

Clean and Precise 清潔性&精確性

Nick- free stripping, with ±0.1mm repeatability for the best quality every time. In

built camera allows the whole process to be monitored. 無缺口剝離，可重複性為

±0.1mm，每次都能獲得最佳質量，內置攝像頭可以監控整個過程。

Versitile 多樣性

Strips single conductor, coax and ribbons; 0.0010mm2 to 16mm2 (50 AWG to 6 AWG).

All insulations. With dual (X & Y) axis motion it handles all strip types: cross-cut,

windows and area ablation; and any shapes.帶狀單導線、同軸電纜和帶狀電纜；0.0010mm2至

16mm2（50 AWG至6 AWG），所有絕緣層。通過雙軸（X和Y）運動，可以處理所有類型的剝線：橫

切、窗口和區域消融；以及任何形狀線纜。

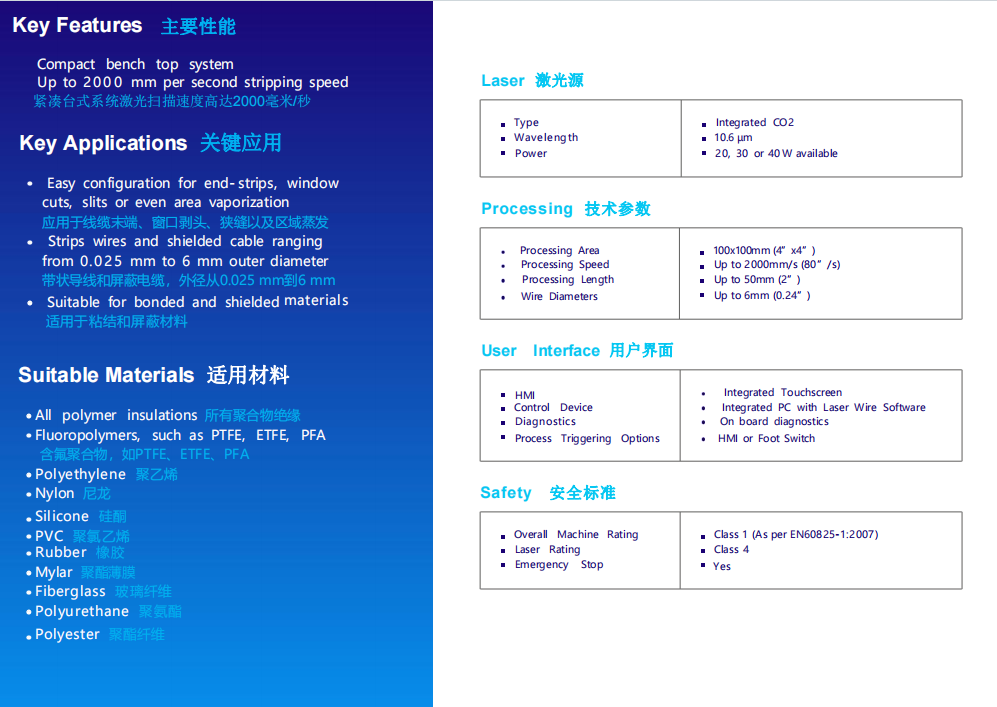

Key Features 主要性能

緊湊臺式系統激光掃描速度高達2000毫米/秒

Key Applicati 關鍵應用

應用於線纜末端、窗口剝頭、狹縫以及區域蒸發

帶狀導線和屏蔽電纜，外徑從0.025 mm到6 mm

適用於粘結和屏蔽材料 所有聚合物絕緣 含氟聚合物，如PTFE、ETFE、PFA 聚乙烯 尼龍  硅酮  聚氯乙烯  橡膠

聚酯薄膜 聚酯薄膜  聚氨酯





Laser 激光源

Type

W avelength

Power

Integrated CO2

10.6 µm

2 0, 30 or 40W available

Processing 技術參數

Processing Area

Processing Speed

Processing Length

Wire Diameters

100x100mm (4”x4”)

Up to 2000mm/s (80”/s)

Up to 50mm (2”)

Up to 6mm (0.24”)

User Interface 用戶界面

HMI

Control Device

Diagnostics

Process Triggering Options

Integrated Touchscreen

Integrated PC with Laser Wire Software

On board diagnostics

HMI or Foot Switch

Safety 安全標準

Overall Machine Rating

Laser Rating

Emergency Stop

Class 1 (As per EN60825-1:2007)

Class 4 Yes



中國總代理商：

上海杰龍電子工程有限公司

SHANGHAI JAMRON ELECTRONIC ENGINEERING CO.,LTD.

地 址：上海市閔行區瓶安路1358號久創科技園3號樓一層(北）郵 編:201109

電話(Tel ):+86-21-51097866 (10 Line) www.jamron.com

Suitable Materials 適用材料

Fluoropolymers, such as PTFE, ETFE, PFA



Polyethylene

Nylon





Rubber

Mylar

Fiberglass

Polyurethane

Poly
