Unpacking Packing and sealing production line with split structure

Case Unpacking, Case Packing, Case Sealing, Baling, Weighing And Detecting, Stacking And Palletizing Packaging Production Line

1 Main purposes

It is mainly used for packaging after filling and sealing of eye drop bottles, syrup bottles, injection ampoules. injection vials, powder injection, freeze-dried powder injection, oral liquids, large infusion, tablets, capsules and other medicines, as well as cosmetics. food and other items. It can automatically complete Such procedures as lamp inspection, labeling, tray making, feeding, cartoning wrapping, case packing, bundling, palletizing, supervision code management, etc.

2 Features

The machine adopts electromechanically integrated control, and a large number of cylinders and servo manipulators are used to complete the feeding of middle packages and the transfer of the carton between the stations. t has high degree of automation. The actuating parts of the machine are all products of imported brands, and the operation is stable and reliable. Each station is highly integrated and the equipment takes small floor space. In applications where the requirements are high, the robot is selected to complete the actions.

3 Main technical parameters

Applicable paper box：maximum 650x335x370mm, can be customized for other size

Packing method: maximum 2x10x5 layers can be customized for others

Production speed: 2-5 boxes/minute

Packing method: 0-100 cartons/box, can be customized for others

Working voltage: 220V 3P380v

Working air supply: 6-7kg/cm²

Whole line table height: customized

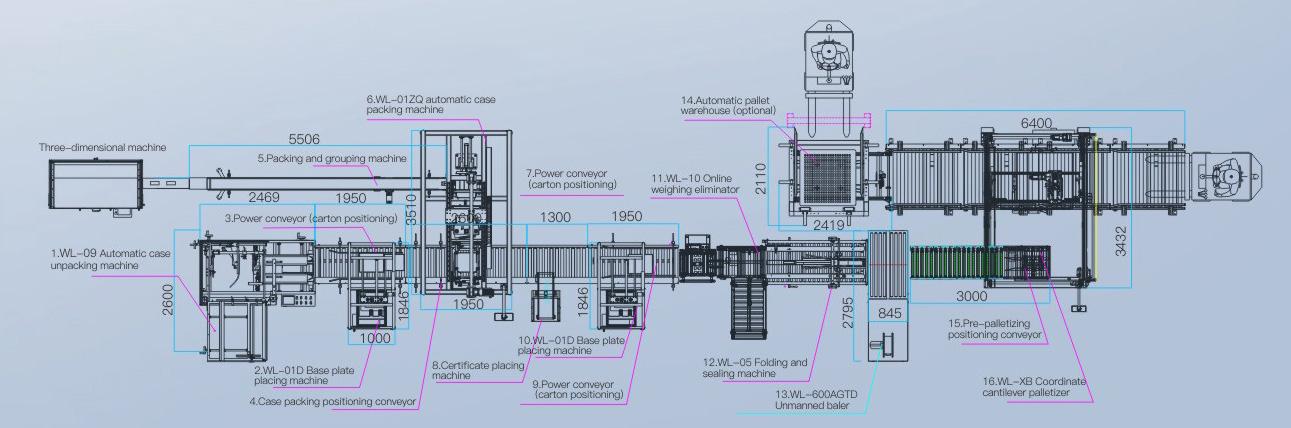

Unpacking, packing and sealing split type machine(coordinate palletizer):
