鋅合金靶材 Zinc Alloy Target

產品說明Product description

鋅鋁、鋅錫材料按比例澆鑄在不鏽鋼管上制備的合金靶材。

Zinc-aluminum, zinc-tin alloy targets are produced by casting the respective materials onto stainless steels.

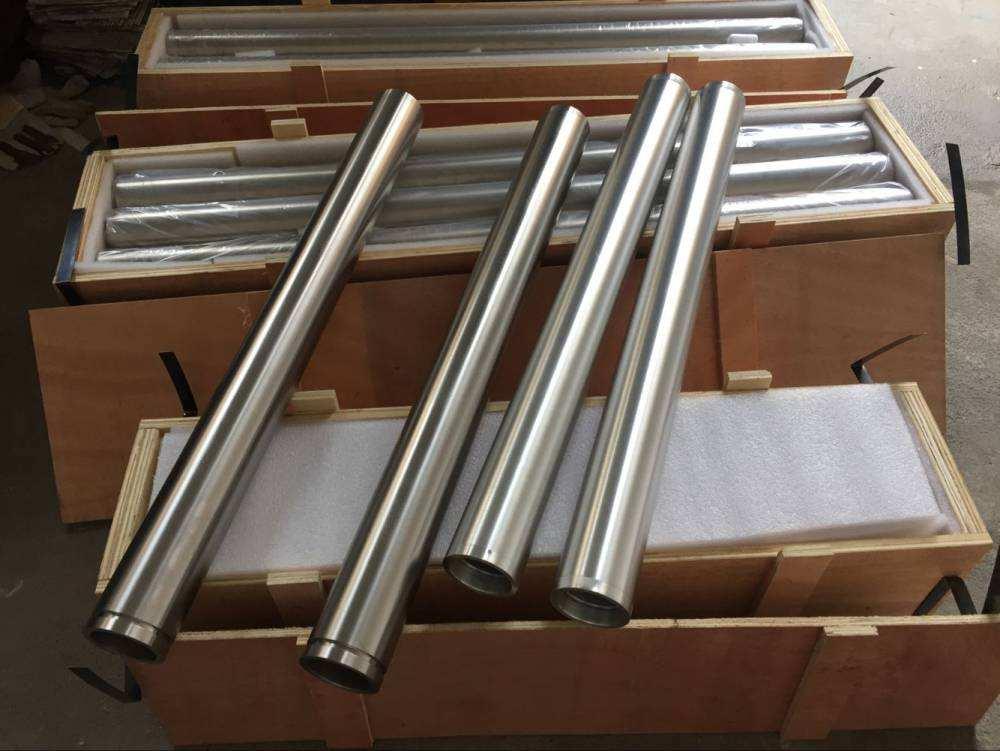

ZnAl旋轉靶 Rotary ZnAl target

組分Chemical composition (wt%)	Al 2.0 +/-0.5 Zn Matrix
純度 Purity (%)	≥99.9
密度 Density (g/cm3)	≥6.91
相對密度 Relative density (%)	≥99
粗糙度Surface roughness (μm)	≤1.6
綁定貼合率 Adhering ratio (%)	≥99 %



靶材尺寸 Dimension

-靶材外徑(Target outer diameter）∅151-160 mm；

-鋼管直徑(Stainless steel tube diameter) OD 133 mm/ID 125 mm;

-長度（Length）≤4 m

-按圖紙要求加工(According to customized drawings)



產品特點Product features

-表面潔淨，無裂痕，刮傷，變形能缺陷

Clean surface without visible defects such as cracks, scratches and deformations

-雜質顆粒小於0.5 mm, 整靶雜質小於3個

Inclusions with sizes of smaller than 0.5 mm and number of n<3 on the target surface





ZnSn旋轉靶 Rotary ZnSn target



組分Chemical composition (wt%)	Sn 50.0 +/-0.5 Zn Matrix
純度 Purity (%)	≥99.9
密度 Density (g/cm3)	≥7.21
相對密度 Relative density (%)	≥99
粗糙度Surface roughness (μm)	≤1.6
綁定貼合率 Adhering ratio (%)	≥99 %



*注：可按照成分要求加工Zn, Sn, Sb等靶材

*Remarks: ZnSnSb-based targets available with customized requirements



應用領域Applications

-Low-E 鍍膜玻璃Low-E glasses

-汽車鍍膜玻璃Automotive glasses
